If you work on a pharmaceutical or bioprocess project, sooner or later the same line appears in the specification: “compliance with ASME BPE”. And with it comes a set of questions that do not always have a clear answer:

  • What exactly does the standard require?
  • Does my current heat exchanger comply or not?
  • What documentation am I entitled to request from the manufacturer?
  • What is the difference between actually complying with ASME BPE and simply putting the label on the front page of the quotation?

This article is written to help you understand what you are really asking for when you request an ASME BPE heat exchanger, which technical solutions make that possible, and which signs should raise concerns when you evaluate suppliers.

What the ASME BPE standard really is

ASME BPE (Bioprocessing Equipment) is a standard developed by the American Society of Mechanical Engineers. It is not a general guideline or a collection of best practices. It is a detailed technical standard that regulates the design, fabrication, finish and documentation of equipment that comes into contact with product in pharmaceutical, biotech and bioprocess facilities.

It covers, among other aspects:

  • Sanitary geometry and hygienic design of the equipment.
  • Acceptable materials and full traceability.
  • Surface finishes and maximum roughness.
  • Hygienic welding: procedures, qualifications and inspection.
  • Dimensions, tolerances and connection configurations.
  • Verifications and tests during manufacturing.
  • Delivery documentation for validation and qualification.

When someone tells you their equipment “complies with ASME BPE”, what they are really saying is that it complies with each of these chapters. The difference between doing it well and doing it badly lies in the detail.

If the physical principle of heat transfer is not your comfort zone, it may help to first review how a heat exchanger works. Here, we assume that part is already understood and focus on the regulatory requirements.

Why it applies to pharmaceutical heat exchangers

A heat exchanger that processes pharmaceutical product, water for injection (WFI), purified water (PW) or fermentation broths must guarantee five things at the same time:

  • It must not introduce contamination into the product under any operating condition.
  • It must be possible to clean and sterilise it in a validatable way and without dismantling it.
  • It must not have dead zones where microorganisms can proliferate.
  • It must be traceable in materials, fabrication and testing.
  • It must maintain all those conditions in a documented way throughout its service life.

These five requirements align directly with cGMP expectations and with the expectations of regulatory audits such as FDA and EMA inspections. In practice, ASME BPE compliance is the recognised industrial way of demonstrating that compliance at equipment level. That is why it is the reference standard in specifications issued by engineering firms and end users in the sector.

For a broader view of the industry context, we also have a guide on key design requirements for heat exchangers in the pharmaceutical industry, which complements what follows here.

The eight specific requirements ASME BPE imposes on a heat exchanger

1. Hygienic design with full self-draining

The equipment must be able to empty completely by gravity in its real installation position. Not when you move it, not when you tilt it: in place. This affects the geometry of the connections, the orientation of the tubes and the design of the heads.

Why is that so critical? Because any residual product trapped between cycles becomes a microbiological niche waiting to happen. A poorly drained unit will not be properly cleaned no matter how much CIP you run through it.

2. Absence of dead zones

The standard establishes specific dimensional criteria for dead legs, maximum L/D ratios and T-connection configurations. Any fraction of product left outside the main flow is, by definition, a sanitary risk zone.

This directly affects how the inlet, outlet, drain and vent connections of the heat exchanger are designed. The same thermal unit may comply or fail to comply with ASME BPE simply because of the way its connections are arranged.

3. Protection against cross-contamination

When a failure in the heat transfer wall could cause mixing between product and service fluid, the standard recommends configurations that eliminate that risk before it happens. The most widely used technical solution is a double tubesheet with an intermediate chamber: if a leak appears, it is detected before it contaminates the product.

This is the design principle behind XLG’s PH Pharmagrade heat exchanger, specifically developed to comply with ASME BPE. For applications where cross-contamination protection is also required but not under full ASME BPE scope, the MRDDP multitube heat exchanger incorporates the same double tubesheet philosophy in a 3-A environment.

4. Materials with full traceability

ASME BPE limits the materials that may be used and requires exhaustive traceability. In heat exchangers, the most common are:

  • AISI 316L stainless steel with controlled sulphur content and delta ferrite, with specific ranges defined by the standard.
  • Duplex steels when corrosion resistance requirements are higher.
  • Titanium in specific processes.

All materials in contact with the product require mill certificates, such as EN 10204 type 3.1 or equivalent, together with full documentation of origin and composition. Without that paperwork, it is not ASME BPE.

5. Surface finish and Ra roughness control

This is probably the best-known requirement of the standard. ASME BPE defines surface finish categories with maximum Ra roughness values expressed in microns or microinches.

Product-contact surfaces require fine finishes, usually achieved by:

  • Mechanical polishing for certain finish levels.
  • Electropolishing when the process requires more uniform finishes and lower roughness values.

One important detail: the finish is measured and documented. It is not a commercial promise, but a test that appears in the delivery dossier with actual Ra values measured at defined points.

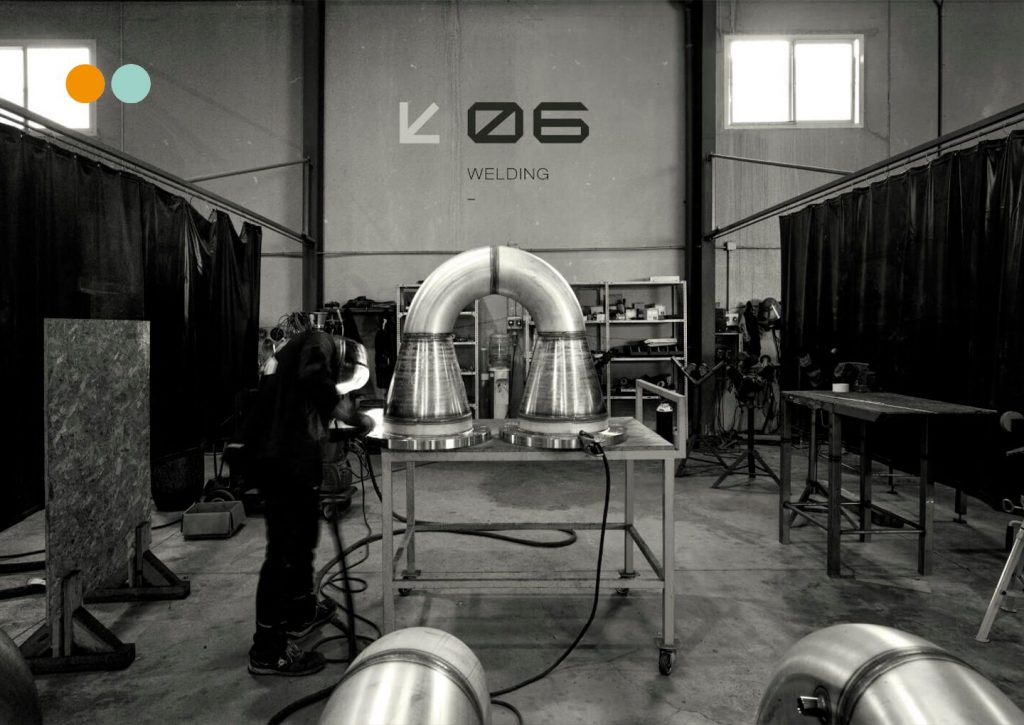

6. Documented hygienic welding

Welds in contact with product must meet specific requirements for execution, inspection and documentation. The standard regulates:

  • Welding procedures (WPS).
  • Welder qualifications (WPQ).
  • Types of inert gas used, such as nitrogen or argon, and their purity.
  • Internal borescope visual inspection.
  • Non-destructive testing when applicable.

Each relevant weld seam must be identified in a weld map with its number, operator, procedure and inspection result. Without that map, there is no real traceability.

7. Compatibility with validatable CIP and SIP

The equipment must withstand repeated chemical cleaning cycles (CIP) and steam sterilisation cycles (SIP) without degradation. And it must do so in a validatable way, meaning that performance can be demonstrated with data.

This affects geometry, materials, seals where present, dimensional tolerances and thermal design. A heat exchanger that cannot properly withstand cleaning cycles is not a pharmaceutical heat exchanger, no matter how much stainless steel it contains.

8. Delivery documentation

An ASME BPE heat exchanger is not just the physical unit. It is the unit plus its documentation package. In a serious project, you should receive at least:

  • Material certificates (3.1).
  • Complete weld map.
  • Test records, including pressure, tightness and passivation tests.
  • Surface finish certificates with actual Ra measurements.
  • Declaration of ASME BPE compliance and applicable standards.
  • Recommended cleaning and sterilisation procedures.
  • As-built drawings.

If someone offers you an “ASME BPE” unit and the documentation package is only four pages long, you have a problem.

How all this translates into real design

Turning regulatory requirements into equipment that truly complies requires design decisions made from the first drawing, not cosmetic adjustments at the end:

Multitube geometry with double tubesheets

It combines high heat transfer surface area with the cross-contamination barrier recommended by the standard for critical processes. The intermediate chamber between the two tubesheets is monitored to detect any leak before it reaches the product. That is the principle behind XLG’s PH.

Welded or seamless tubes with controlled internal finish

The choice between welded and seamless tubes depends on the project’s level of requirement and the available budget. In both cases, what is critical is the internal finish. A tube with roughness outside specification invalidates the unit, no matter how perfect the rest may be.

Corrugated or smooth tubes

Corrugation increases turbulence and improves the heat transfer coefficient, allowing more compact equipment. A properly designed corrugated tube can fully comply with ASME BPE. The requirement is not the tube geometry itself, but its cleanability and finish.

Electropolishing when the process requires it

Electropolishing is the usual finish in high-end pharmaceutical equipment. It produces uniform surfaces, very low roughness values and improved corrosion resistance. It is selected when the process, the product or the regulations of the target market require it.

Design conceived for CIP and SIP from the start

You cannot simply “adapt” a conventional design to CIP. The cleaning cycle and the sterilisation cycle are part of the thermal and mechanical design from the very first drawing.

ASME BPE versus other hygienic design standards

The standard coexists with other common references in the sector. Knowing which one applies in each project avoids confusion in specifications:

3-A Sanitary Standards

Widely used in food and dairy applications. It follows similar hygienic principles, but with a different focus and scope. A unit may be 3-A and not ASME BPE, or the other way around.

EHEDG

Focused on hygienic design in Europe, with its own component and equipment certifications. It is more complementary than alternative.

cGMP (FDA)

A regulatory framework, not a mechanical design standard. ASME BPE is one of the recognised technical routes for meeting cGMP requirements at equipment level.

Pressure Equipment Directive (PED) 2014/68/EU

Mandatory for pressure equipment in Europe. It is independent from ASME BPE, but compatible with it. A pharmaceutical heat exchanger in Europe can comply with both.

In international pharmaceutical projects, ASME BPE is the dominant standard. When the specification comes from a serious engineering firm and the final product is intended for regulated markets, it will usually be the central reference.

The difference between “complying with the standard” and designing the equipment well

This is where the nuance appears that separates a good purchase from a bad one.

A unit can be formally ASME BPE compliant and still not be the best solution for your process. Compliance is the starting point, not the only selection criterion. At the same time, you should also evaluate:

  • The real heat load and thermal efficiency for your product.
  • Behaviour with the actual fluid, not in the abstract.
  • The possibility of recovering energy between process streams.
  • Total cost of ownership, including investment, operation, cleaning and maintenance.
  • Expected service life under the real CIP/SIP cycles of your plant.

Good design integrates regulatory compliance and performance. The alternative, complying with the standard while offering thermally mediocre equipment, is common in the market and ends up being paid for during operation.

How to identify a supplier that really complies

Before closing a purchase, these are the questions worth asking:

  • Can you deliver the full documentation dossier required by ASME BPE, including weld map, 3.1 certificates and actual Ra measurements?
  • Do you have documented experience in previous pharma or biotech projects? With which engineering firms and end customers?
  • Can you show examples of previously delivered units with comparable documentation?
  • Are your welding procedures and qualifications available for audit?
  • How do you manage material traceability from heat number to finished product?

A solid answer to these five questions distinguishes a truly capable supplier from one that simply puts the label on the quotation.

Requesting an ASME BPE heat exchanger for your process

At XLG, we have been designing and manufacturing ASME BPE-compliant heat exchangers for pharma, biotech and bioprocess projects for nearly two decades. The PH Pharmagrade heat exchanger is specifically conceived under this standard, with double tubesheets, electropolishing and a complete documentation dossier.

You can explore the full Hygienic and Sanitary line from XLG to see the complete catalogue, or tell us directly about your project and process data. We will send you a specific technical proposal with the documentation you need for validation.

Frequently asked questions

Do all pharmaceutical heat exchangers have to comply with ASME BPE?

No. ASME BPE is required when the specification expressly states it, when the final product is intended for markets where the standard is a reference, typically the United States and a large part of Europe in regulated pharma, or when the end customer requires it under internal policy. There are lower-criticality pharmaceutical processes where a hygienic 3-A or EHEDG design is sufficient without the need for full ASME BPE compliance.

How much more expensive is an ASME BPE unit compared with a standard hygienic design?

It depends on the equipment and the scope, but the typical extra cost is often between 25% and 60% compared with an equivalent 3-A hygienic unit. It comes from tighter material control, documented welding, electropolishing, additional testing and the documentation dossier. It is not just commercial margin. It is real work that has to be done.

What is the difference between ASME BPE and ASME Section VIII?

ASME Section VIII regulates the mechanical design of pressure vessels in general. ASME BPE adds the specific hygienic requirements for bioprocessing. A pharmaceutical heat exchanger will typically comply with both: Section VIII for the pressure side and BPE for the hygienic side. They are not alternatives. They are complementary.

Can ASME BPE be certified by an independent third party?

The standard does not include a mandatory third-party certification scheme, unlike, for example, the ASME “U” stamp for pressure vessels or the 3-A symbol. Compliance is demonstrated by the manufacturer’s declaration supported by the complete documentation dossier. For units with ASME stamp, an AI (Authorized Inspector) verifies the pressure part; the BPE part is typically audited by the customer or its engineering firm.

What documents am I entitled to request if I buy an ASME BPE heat exchanger?

At a minimum: 3.1 material certificates, weld map, applicable WPS and WPQ, borescope visual inspection records, actual Ra roughness measurements, passivation certificates, pressure and tightness test reports, declaration of ASME BPE compliance and as-built drawings. All of this is part of the equipment and should be delivered with it.

Can a plate heat exchanger comply with ASME BPE?

It is uncommon. The standard is much more favourable to tubular geometries because they make it easier to achieve self-draining behaviour, weld traceability, controlled internal finish and absence of dead zones. Plate heat exchangers tend to include gaskets, multiple contact areas and more complex geometries that make full compliance harder to achieve. That is why, in regulated pharma, the natural choice is usually multitubular equipment.
